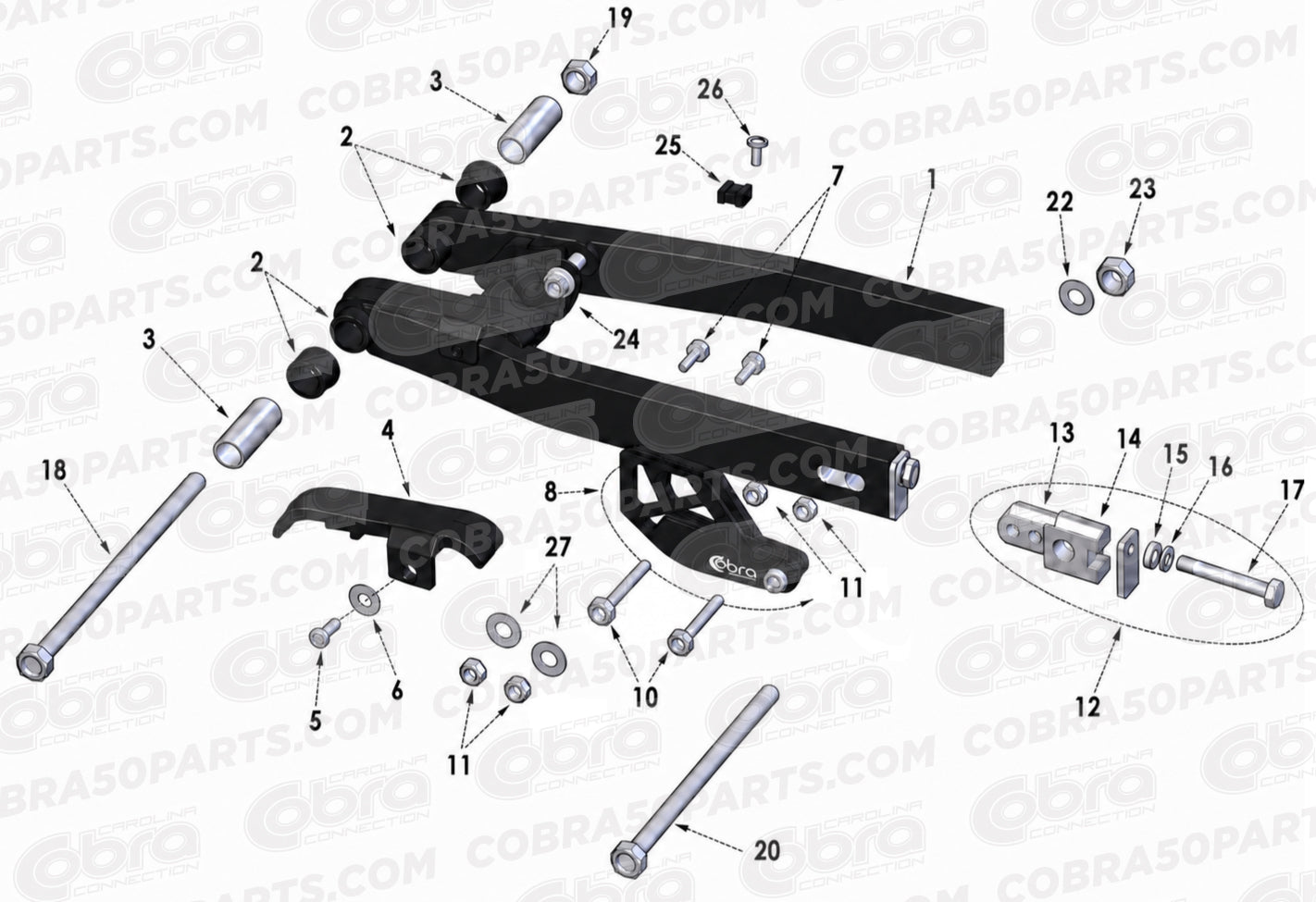

2027 Cobra CX50JR - SWINGARM ASSEMBLY
2027 Cobra CX50JR - SWINGARM ASSEMBLY
$194.60
PART
1. SWINGARM
2. BUSHING, SWINGARM (4 REQUIRED)
3. SPACER, PIVOT TUBE (2 REQUIRED)
4. GUARD, SWINGARM CHAIN
5. SCREW, #10X 5/8" FLAT HEAD TORX
6. WASHER, FLAT - 5MM
7. BOLT, FLANGE HEAD - M6 X 20MM (2 REQUIRED)
8. GUIDE, CHAIN – ASSEMBLY COMPLETE
9. GUIDE, CHAIN - BOTTOM SLIDER & INSIDE
10. BOLT, FLANGE HEAD M6 X 25MM (2 REQUIRED)
11. M6 LOCKNUT (2 REQ’D)
12. WHEEL PULL ASSEMBLY (BLOCK CAP BOLT AND WASHER)
13. WHEEL PULL
14. WHEEL PULL ENDCAP
15. 8mm FLAT WASHER
16. 8mm LOCK WASHER
17. M8X65mm HEX HEAD BOLT (FULL THREAD)
18. SWINGARM PIVOT BOLT
19. M12 LOCK NUT
20. BOLT AXLE 195MM
22. AXLE WASHER
23. NUT LOCK M12
24. BOLT, M10 X 39mm FLANGE HEAD
25. CLAMP - BRAKE HOSE
26. FASTENER – ½” SELF TAPPING
27. WASHER, 6MM
1. SWINGARM
2. BUSHING, SWINGARM (4 REQUIRED)
3. SPACER, PIVOT TUBE (2 REQUIRED)
4. GUARD, SWINGARM CHAIN
5. SCREW, #10X 5/8" FLAT HEAD TORX
6. WASHER, FLAT - 5MM
7. BOLT, FLANGE HEAD - M6 X 20MM (2 REQUIRED)
8. GUIDE, CHAIN – ASSEMBLY COMPLETE
9. GUIDE, CHAIN - BOTTOM SLIDER & INSIDE
10. BOLT, FLANGE HEAD M6 X 25MM (2 REQUIRED)
11. M6 LOCKNUT (2 REQ’D)
12. WHEEL PULL ASSEMBLY (BLOCK CAP BOLT AND WASHER)
13. WHEEL PULL
14. WHEEL PULL ENDCAP
15. 8mm FLAT WASHER
16. 8mm LOCK WASHER
17. M8X65mm HEX HEAD BOLT (FULL THREAD)
18. SWINGARM PIVOT BOLT
19. M12 LOCK NUT
20. BOLT AXLE 195MM
22. AXLE WASHER
23. NUT LOCK M12
24. BOLT, M10 X 39mm FLANGE HEAD
25. CLAMP - BRAKE HOSE
26. FASTENER – ½” SELF TAPPING
27. WASHER, 6MM
