2024 - 2026 COBRA CX50FWE - FRAME
2024 - 2026 COBRA CX50FWE - FRAME
$664.21

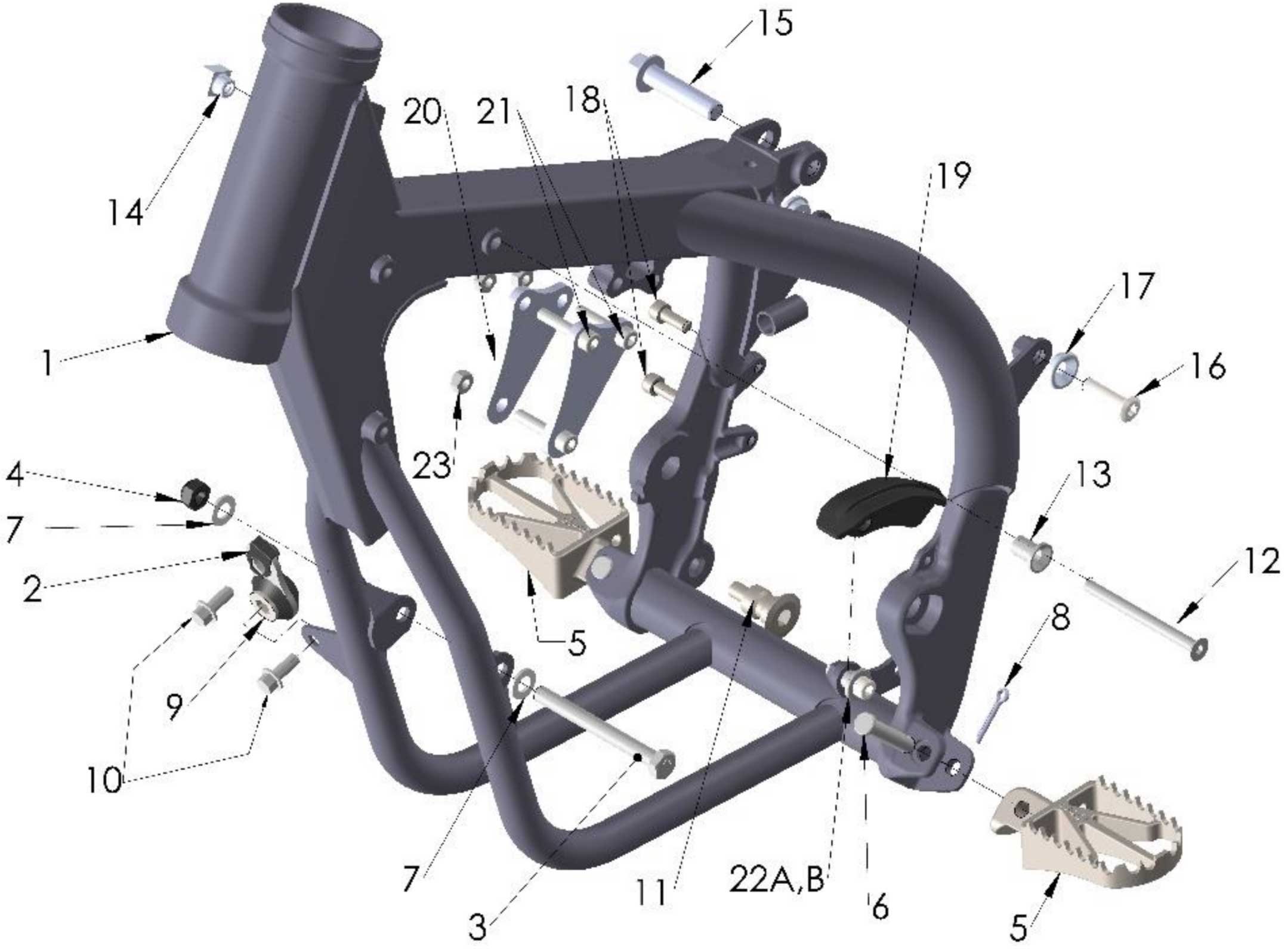

PART
1. FRAME, FWE (2025 VIN, CALL WITH VIN TO ORDER 2026)
2. NUT, CLIP - 6MM
3. BOLT, HEX HEAD - M8 X 80MM
4. NUT, LOCK - 8MM
5. FOOTPEGS
6. PIN, CLEVIS (INDIVIDUAL)
7. WASHER, FLAT - 8MM
8. COTTER PIN - 1/8" X 3/4"
9. MOUNT, ISOLATION
10. BOLT, FLANGE - M6 X 16MM (2 REQUIRED)
11. BOLT - BRAKE PEDAL PIVOT
12. SCREW, FLAT HEAD - M6 X 75MM
13. BUSHING - FUEL TANK
14. NUT, SQUARE
15. BOLT, HEX HEAD - M10 X 40MM
16. BOLT, FLAT HEAD TORX - 7MM
17. COMPRESSION LIMITER
18. BOLT - M6 X 16
19. SLIDE - LOWER CHAIN SLIDE
20. BRACKET – HEAD STAY (2 REQUIRED)
21. BOLT, FLANGE - M6 X 30MM (3 REQUIRED)
22A. BOLT, SHCS - M6 X 20MM
22B. SPACER, COMPRESSION LIMITING
23. NUT, LOCK - M6 (3 REQUIRED)
SPRING, FOOTPEG (2 REQUIRED)
1. FRAME, FWE (2025 VIN, CALL WITH VIN TO ORDER 2026)
2. NUT, CLIP - 6MM
3. BOLT, HEX HEAD - M8 X 80MM
4. NUT, LOCK - 8MM
5. FOOTPEGS
6. PIN, CLEVIS (INDIVIDUAL)
7. WASHER, FLAT - 8MM
8. COTTER PIN - 1/8" X 3/4"
9. MOUNT, ISOLATION
10. BOLT, FLANGE - M6 X 16MM (2 REQUIRED)
11. BOLT - BRAKE PEDAL PIVOT
12. SCREW, FLAT HEAD - M6 X 75MM
13. BUSHING - FUEL TANK
14. NUT, SQUARE
15. BOLT, HEX HEAD - M10 X 40MM
16. BOLT, FLAT HEAD TORX - 7MM
17. COMPRESSION LIMITER
18. BOLT - M6 X 16
19. SLIDE - LOWER CHAIN SLIDE
20. BRACKET – HEAD STAY (2 REQUIRED)
21. BOLT, FLANGE - M6 X 30MM (3 REQUIRED)
22A. BOLT, SHCS - M6 X 20MM
22B. SPACER, COMPRESSION LIMITING
23. NUT, LOCK - M6 (3 REQUIRED)
SPRING, FOOTPEG (2 REQUIRED)
