2024 Cobra CX50SRX FWE
2024 - 2026 COBRA CX50FWE - VENOM ENGINE, BOTTOM END & TRANSMISSION
Previous
Next

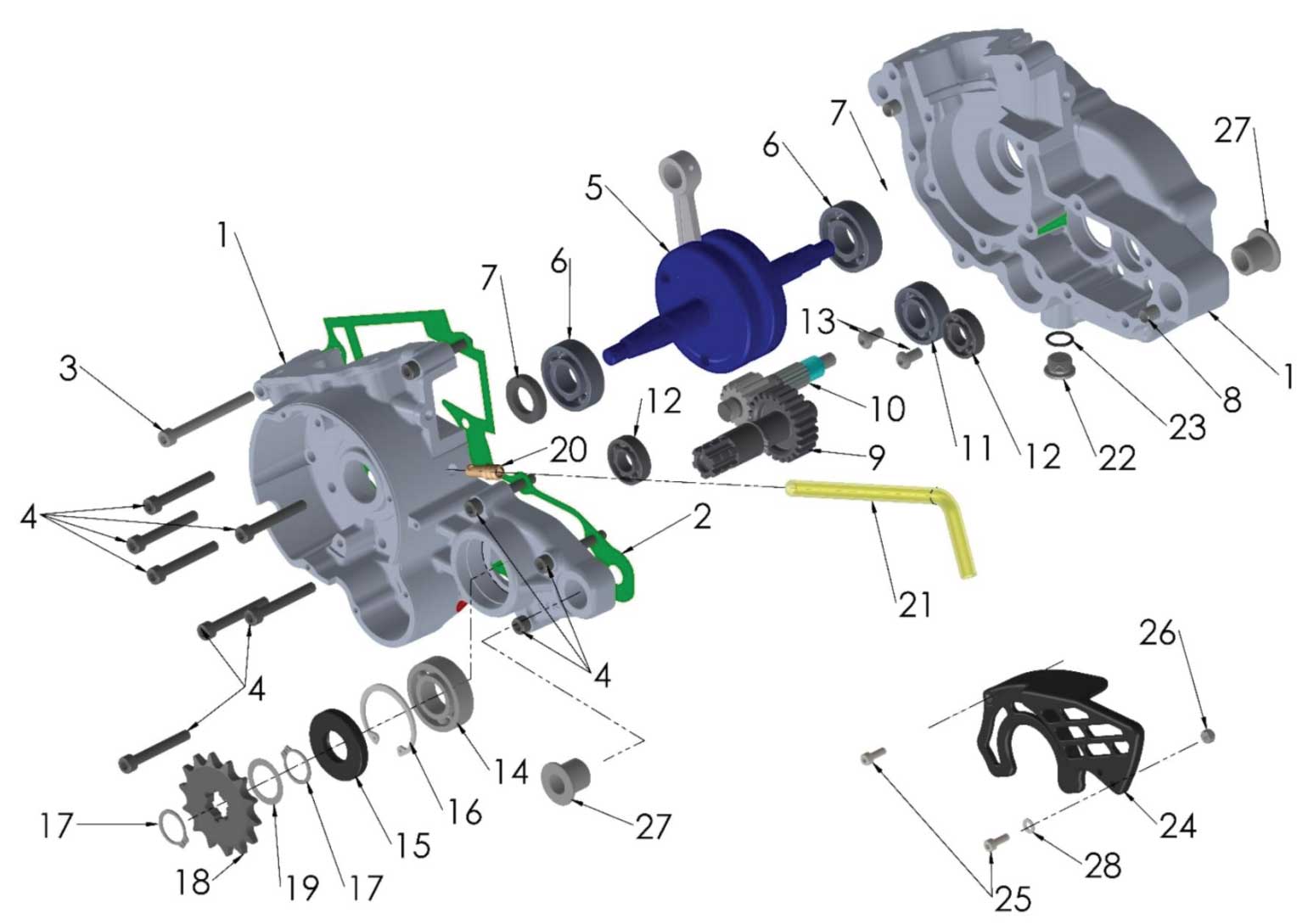

2024 - 2026 COBRA CX50FWE - VENOM ENGINE, BOTTOM END & TRANSMISSION
$14.33
PART
1. CRANKCASE SET WITH BEARINGS, SEALS & GASKET
2. GASKET, CENTERCASE
3. BOLT, M6 X 65 SHCS
4. BOLT, M6 X 35 SHCS (12 REQUIRED)
5. CRANKSHAFT, WIDE CHEEK
6. BEARING, CRANKSHAFT - OEM (2 REQUIRED)
7. SEAL, CRANKSHAFT (2 REQUIRED)
8. DOWEL, HOLLOW - 8.4 x 14 x 7
9. GEAR, OUTPUT
10. GEAR, INPUT
11. BEARING - TRANS. SEC. GEAR
12. BEARING 6001 NO SEALS
14. BEARING OUTPUT- 50 & 65
15. SEAL OUTPUT - CX50 VENOM
16. SNAP RING - OUTPUT BEARING - CX50 VENOM
17. SNAP RING-OUTPUT-COBRA FOR OUTPUT SHAFT
18A. SPROCKET 13T
18B. SPROCKET 14T (STOCK JR)
18C. SPROCKET 15T (STOCK SR/FWE)
18D. SPROCKET 16T
19A. SHIM - SPROCKET - 0.2 THK 20/28 ID/OD
19B. SHIM - SPROCKET - 0.3 THK 20/28 ID/OD
19C. SHIM - SPROCKET - 0.5 THK 20/28 ID/OD
19D. SHIM - SPROCKET - 1.0 THK 20/28 ID/OD
20. VENT HOSE NIPPLE (LARGE)
21. HOSE CRANKCASE VENT 2010 - CURRENT
22A. PLUG - OIL FILL/OIL DRAIN/COOLANT VENOM (SILVER)
22B. PLUG - OIL FILL/OIL DRAIN/COOLANT VENOM (BLACK)
23. O-RING - KICK SHAFT & OIL FILL PLUG
24. GUARD - COUNTERSHAFT SPROCKET - CX50 VENOM
25. M4 X 12 SHCS ZINC
26. 4MM LOCK NUT
27. BUSHING, ENGINE PIVOT
28. 4MM FLAT WASHER
GASKET/ORING KIT, COMPLETE (BOTTOM & TOP END)
6. BEARING, CRANKSHAFT - TIMKEN (2 REQUIRED)
1. CRANKCASE SET WITH BEARINGS, SEALS & GASKET
2. GASKET, CENTERCASE
3. BOLT, M6 X 65 SHCS
4. BOLT, M6 X 35 SHCS (12 REQUIRED)
5. CRANKSHAFT, WIDE CHEEK
6. BEARING, CRANKSHAFT - OEM (2 REQUIRED)
7. SEAL, CRANKSHAFT (2 REQUIRED)
8. DOWEL, HOLLOW - 8.4 x 14 x 7
9. GEAR, OUTPUT
10. GEAR, INPUT
11. BEARING - TRANS. SEC. GEAR
12. BEARING 6001 NO SEALS
14. BEARING OUTPUT- 50 & 65
15. SEAL OUTPUT - CX50 VENOM
16. SNAP RING - OUTPUT BEARING - CX50 VENOM
17. SNAP RING-OUTPUT-COBRA FOR OUTPUT SHAFT
18A. SPROCKET 13T
18B. SPROCKET 14T (STOCK JR)
18C. SPROCKET 15T (STOCK SR/FWE)
18D. SPROCKET 16T
19A. SHIM - SPROCKET - 0.2 THK 20/28 ID/OD
19B. SHIM - SPROCKET - 0.3 THK 20/28 ID/OD
19C. SHIM - SPROCKET - 0.5 THK 20/28 ID/OD
19D. SHIM - SPROCKET - 1.0 THK 20/28 ID/OD
20. VENT HOSE NIPPLE (LARGE)
21. HOSE CRANKCASE VENT 2010 - CURRENT
22A. PLUG - OIL FILL/OIL DRAIN/COOLANT VENOM (SILVER)
22B. PLUG - OIL FILL/OIL DRAIN/COOLANT VENOM (BLACK)
23. O-RING - KICK SHAFT & OIL FILL PLUG
24. GUARD - COUNTERSHAFT SPROCKET - CX50 VENOM
25. M4 X 12 SHCS ZINC
26. 4MM LOCK NUT
27. BUSHING, ENGINE PIVOT
28. 4MM FLAT WASHER
GASKET/ORING KIT, COMPLETE (BOTTOM & TOP END)
6. BEARING, CRANKSHAFT - TIMKEN (2 REQUIRED)
